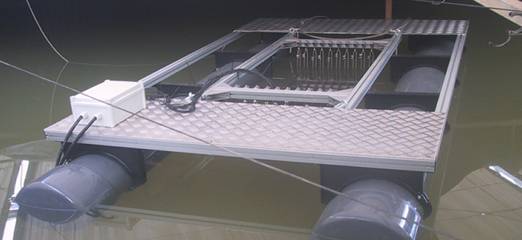

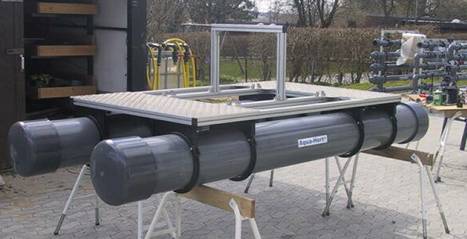

Aqua-Hort Float Model

200 m3/hour, 750 gpm, 300 or 400 amp

  • Dimension 3,0 m long, 1,0 m high and 1,6 m wide.
  • Float placed in reservoir/tank. 315 mm float pipes, alu frame.
  • 8 Electrode plates 0,5 x 2,0 meter, 220 to 600 kg Copper.
  • Electro magnetic treatment pipe.
  • Flow Meter (B├╝rkert).
  • Weight 400-1000 Kgs



Aqua-Hort
